Since its establishment in 1913, Tenryu Saw Mfg. Co., Ltd. has been a pioneer and leader in the Japanese power saw industry, expanding its business to both domestic and overseas markets.

For over 100 years, Tenryu has used their developed technologies and numerous manufacturing facilities to provide various industries with outstanding products that meet market needs, which grow increasingly sophisticated and diverse every day. In recent years, in addition to saw blade designs that help conserve resources and reduce labor, Tenryu has been developing products with greater precision, efficiency, and durability by making full use of the latest coating technologies.

Since its establishment in 1913, Tenryu Saw Mfg. Co., Ltd. has been a pioneer and leader in the Japanese power saw industry, expanding its business to both domestic and overseas markets.

For over 100 years, Tenryu has used their developed technologies and numerous manufacturing facilities to provide various industries with outstanding products that meet market needs, which grow increasingly sophisticated and diverse every day. In recent years, in addition to saw blade designs that help conserve resources and reduce labor, Tenryu has been developing products with greater precision, efficiency, and durability by making full use of the latest coating technologies.

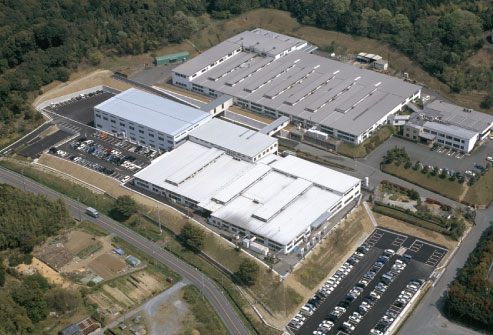

To meet the needs of users all over the world, Tenryu has established two production bases in both Japan and China as well as one in Thailand. In addition, they have expanded their sales networks in Japan as well as in North America, Central America, Europe, Southeast Asia, etc.

As Japan enters the new Reiwa era, the global economy is becoming increasingly uncertain. But even under such circumstances, Tenryu’s main objective is to make contributions to society through corporate management. Tenryu will work together as a company to achieve growth with their corporate philosophy of “Sincerity and harmony.” Tenryu thanks you for your continued understanding and support.

"Our goal is to develop products that accommodate new materials and advanced cutting conditions."

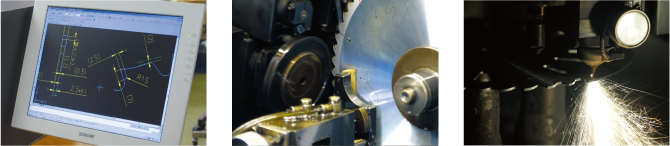

Product Development Based On Expert Know-how

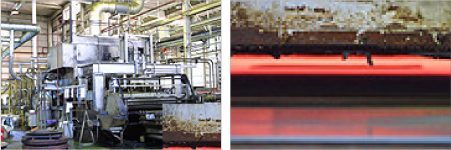

The demand for greater quality and precision in the field of cutting technology is being fueled by the growing diversity in types of materials being cut. Tenryu’s Research & Development Department enjoys a staff of engineers with specialties ranging from mechanical dynamics, electronic measurements, and control technology, to metal materials, heat treatment, and mechanical forming technology. Their engineers direct projects related to new product development and manufacturing processes. Tenryu’s R&D activities are committed to meeting all the customers’ needs.

Tenryu Featured Cutting Tools

HSS Tools - Metal Saw Blades

Only a few microns thick, the PVD coating increases surface hardness and, along with the low friction coefficient, prevents built up edge. Also, the feed speed can be improved by about 50% compared to non-coated products, thanks to the high thermal resistance. As a result, cutting time is reduced, the saw needs to be replaced less often, and its life is also lengthened.

  • PVD coated
  • Surface handness:HV 2200-2400
  • Oxidizing temperature:600℃
  • Friction coefficient:0.55
  • Application:Mild steel, Medium hardness steel

TiN

This blade is optimal for cutting high-tensile steel material or stainless steel. Thanks to the high thermal resistance and low friction coefficient, high-speed dry cutting is supported.

  • PVD coated
  • Surface handness:HV3300-3500
  • Oxidizing temperature:800℃
  • Friction coefficient:0.60
  • Application:High hardness steel, Stainless steel, titanium steel

TiAIN

The advantages of this PVD coating are coat thickness, high surface hardness, and a low friction coefficient. This saw is optimal for cutting sticky materials where gumming happens easy, such as non-ferrous metals.

  • PVD coated
  • Surface handness:HV2500-290
  • Oxidizing temperature:700℃
  • Friction coefficient:0.30
  • Application:Nonferrous metal such as Cast iron, Aluminum and Copper

CrN

The entire blade is steam treated and has a black oxide (Fe3 O4) coating wホth oil-bearing properties. Use it for ordinary material cutting, except for non-ferrous metals.

  • Surface handness:HV900
  • Friction coefficient:0.65
  • Application:Common steel excerpt nonferrous metal

OV

This blade has no surface treatment and is mainly used for cutting non-ferrous metals.

  • Surface handness:HV750-850
  • Application:Nonferrous metal such as Aluminum and Copper

White

Carbide Tools

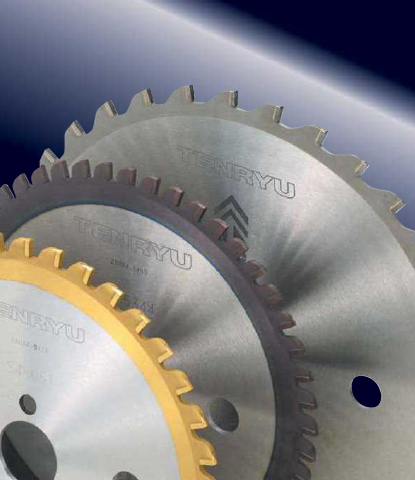

For Ferrous Metals (Heavy-Duty Cutting)

Work material categories
Iron, Stainless steel

Tooth types
Triple Tip Grind, Notched Tooth

Carbide tip materials
Tungsten carbide M20, P30 PVD coating; TiN, TiAlN, CrN

Dimensions
DiameterKerfTeeth
280~18002.0~12.028~260
Cutting parameters
Cutting Speed (m/min)Feed Rate (mm /tooth)
IronHeavy50~1000.08~0.15
Medium80~1200.05~0.08
Stainless steel50~900.05~0.10

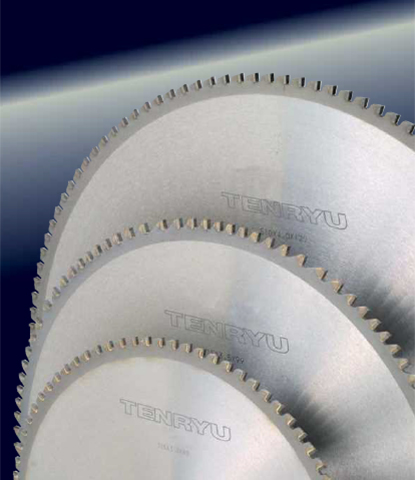

For Ferrous Metals (Light-Duty Cutting)

Work material categories
Iron, Stainless steel

Tooth types
Triple Tip Grind, Notched Tooth, Chamfered Flat Tooth

Carbide tip materials
Tungsten carbide P30, Cermet

Dimensions
DiameterKerfTeeth
305 – 6302.0 – 4.080 – 150
Cutting parameters
Cutting Speed (m/min)Feed Rate (mm/tooth)
Iron500 – 10000.02 – 0.06
Stainless steel1000 – 20000.02 – 0.06

For Non-Ferrous Metals (CBB-5)

AFB (Alternate Face Bevel)

Application
Aluminum, Copper

SizeAnglesProduct Code
DiameterKerfPlate ThicknessCenter holeTeethABCD
2052.21.825.48055130TSN 2008 001
2552.52.025.48055130TSN 2508 001
2552.52.025.410055130TSN 2010 001
3053.02.525.410055130TSN 3010 001
3553.02.525.410055130TSN 3510 001
3553.02.525.412055130TSN 3512 001
3803.02.525.410055130TSN 3810 001
4053.02.525.410055130TSN 4010 001
4052.52.025.412055130TSN 4012 002
4053.02.525.412055130TSN 4012 003
4553.02.525.412055130TSN 4512 001
5103.53.025.412055130TSN 5112 001

Carbide Tools

for Ferrous

for Non-Ferrous

for Wood

for Other
